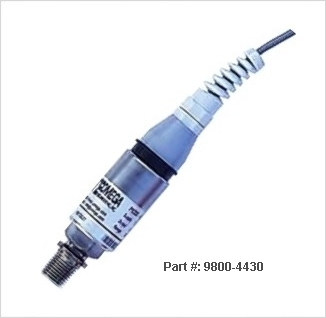

Nitrogen Tank Sensor
This item is a stainless steel, cylindrical device that threads into the high pressure side of a nitrogen tank's pressure regulator. It measures tank pressure from 0 to 3,000 Pounds per Square Inch (PSI) and outputs the information as a loop current value in the range of 4 to 20 milliamperes.
The device is powered by voltage—in the range of 10 to 48 volts DC—supplied over a pair of dedicated conductors by the 289H LSS monitor. PressureMAP calls the 289H monitor, scans the device reading, and converts the PSI value to a volume reading between 0 and 220 cubic feet.
For additional information about this Nitrogen Tank Sensor, refer to our data sheet
This item is a stainless steel, cylindrical device that threads into the high pressure side of a nitrogen tank's pressure regulator. It measures tank pressure from 0 to 3,000 Pounds per Square Inch (PSI) and outputs the information as a loop current value in the range of 4 to 20 milliamperes.The device is powered by voltage—in the range of 10 to 48 volts DC—supplied over a pair of dedicated conductors by the 289H LSS monitor. PressureMAP calls the 289H monitor, scans the device reading, and converts the PSI value to a volume reading between 0 and 220 cubic feet.
For additional information about this Nitrogen Tank Sensor, refer to our data sheet
