Central Office Air Delivery

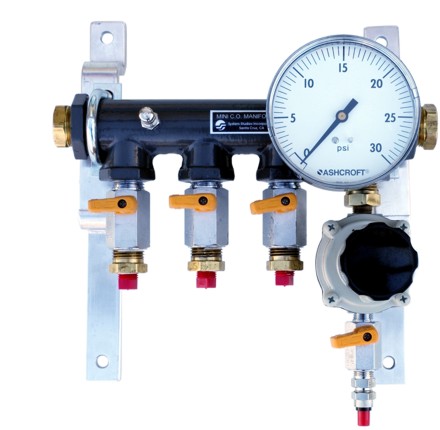

Mini CO Manifold, With Regulator (P/N 9800-5422)
In addition to our larger central office Balance Manifold (Part No. 9800-5432), System Studies offers two additional manifolds that are particularly suited for smaller central offices. Part No. 9800-5422, shown above, includes four bottom ports and two side ports, a large-face 0-30 psi pressure gauge, a tank valve for manual verification, and a pressure regulator on one of the outgoing ports (used for old-style, non-regulated B meter/distribution panels). Model 9800-5429, shown below, does not include the pressure regulator and the 1/4" NPT-M to 3/8" tubing connector.

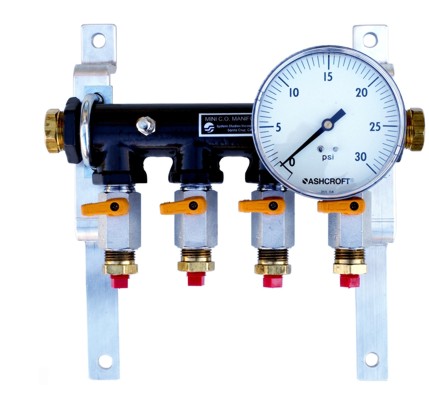

Mini CO Manifold (P/N 9800-5429)
Both manifolds accommodate a variety of connector fittings to provide numerous options for incoming air dryer/emergency backup dryer feeds and outgoing air delivery to office panel equipment. Manifold capability can be expanded beyond the four lower-facing manifold ports by using the larger plugged ports on the manifold ends. Additionally, two manifolds can be connected using a 3/4" NPT-M to 3/4" NPT-M nipple fitting when office equipment requirements exceed six outputs.
For additional information about these small office balancing manifolds, including various fitting options, refer to Mini CO Manifolds data sheet.
Mini CO Manifold, With Regulator (P/N 9800-5422)
In addition to our larger central office Balance Manifold (Part No. 9800-5432), System Studies offers two additional manifolds that are particularly suited for smaller central offices. Part No. 9800-5422, shown above, includes four bottom ports and two side ports, a large-face 0-30 psi pressure gauge, a tank valve for manual verification, and a pressure regulator on one of the outgoing ports (used for old-style, non-regulated B meter/distribution panels). Model 9800-5429, shown below, does not include the pressure regulator and the 1/4" NPT-M to 3/8" tubing connector.
Mini CO Manifold (P/N 9800-5429)
Both manifolds accommodate a variety of connector fittings to provide numerous options for incoming air dryer/emergency backup dryer feeds and outgoing air delivery to office panel equipment. Manifold capability can be expanded beyond the four lower-facing manifold ports by using the larger plugged ports on the manifold ends. Additionally, two manifolds can be connected using a 3/4" NPT-M to 3/4" NPT-M nipple fitting when office equipment requirements exceed six outputs.
For additional information about these small office balancing manifolds, including various fitting options, refer to Mini CO Manifolds data sheet.
