Flow Measurement Assembly
The Flow Measurement Assembly is the ideal component for all manifold locations where Flow Finders or Flow Finder Manifolds™ have not been previously installed. It can be ordered with a High Resolution Flow or Dual (pressure/flow) Transducer. Additionally, you can also select one of the available six Flow Finder ranges for the assembly: either 0–9.5 SCFH (270 LPH), 0–19 SCFH (540 LPH), 0–47.5 SCFH (1350 LPH), 0–95 SCFH (2700 LPH), 0–190 SCFH (5380 LPH) or 0–475 SCFH (13,500 LPH). This last two Flow Finders are used in 1" air pipe systems.

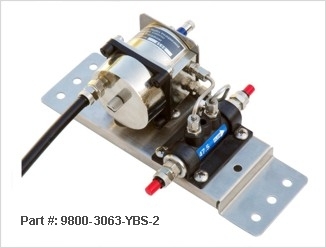

The transducer is equipped with a removable wire cover assembly that provides access to device pairs for splicing. Two product numbers distinguish between the type of conductor tube fitting supplied on the wire cover assembly. One version is equipped with a standard nickel-plated brass fitting for 3/8 inch (1 cm) plastic tubing (Part No. 9800-3063 shown above); the other has a 37° flared, stainless steel fitting for braided stainless steel tubing (Part No. 9800-3066). The pneumatic connection between the transducer and the Flow Finder is achieved by using 1/8 inch (0.3 cm) preformed stainless steel tubing.
Please note that an eight digit part number, range, fitting and transducer type designation must be specified for each Flow Finder Assembly when ordering.
Ordering Examples:
If you ordered a 9800-3063-YY-NN-2 Flow Measurement Assembly, you would receive a stainless steel bracket with a 0–475 SCFH Flow Finder and a High Resolution Dual Transducer (shown here). No pipe fitting would be supplied with this order.
For additional information about our Flow Measurement Assemblies, please refer to the product data sheet. Pricing information can be obtained from your Purchasing Department or by calling System Studies Incorporated at 800-247-8255.
Flow Measurement Assembly
The Flow Measurement Assembly is the ideal component for all manifold locations where Flow Finders or Flow Finder Manifolds™ have not been previously installed. It can be ordered with a High Resolution Flow or Dual (pressure/flow) Transducer. Additionally, you can also select one of the available six Flow Finder ranges for the assembly: either 0–9.5 SCFH (270 LPH), 0–19 SCFH (540 LPH), 0–47.5 SCFH (1350 LPH), 0–95 SCFH (2700 LPH), 0–190 SCFH (5380 LPH) or 0–475 SCFH (13,500 LPH). This last two Flow Finders are used in 1" air pipe systems.The transducer is equipped with a removable wire cover assembly that provides access to device pairs for splicing. Two product numbers distinguish between the type of conductor tube fitting supplied on the wire cover assembly. One version is equipped with a standard nickel-plated brass fitting for 3/8 inch (1 cm) plastic tubing (Part No. 9800-3063 shown above); the other has a 37° flared, stainless steel fitting for braided stainless steel tubing (Part No. 9800-3066). The pneumatic connection between the transducer and the Flow Finder is achieved by using 1/8 inch (0.3 cm) preformed stainless steel tubing.
Ordering Information
| PART NUMBER | RANGE* | FITTINGS** | TD TYPE*** |
| 9800-3063 (transducer has brass nickel-plated conductor tube fitting) |
W, X, Y, Z, XX, YY | BS, SS, NN, PP, PB | 1, 2, 9, U, |
| 9800-3066 (transducer has 37° stainless steel conductor tube fitting) |
W, X, Y, Z, XX, YY | BS, SS, NN, PP, PB | 1, 2, 9, U, |
| *Range: | |||
| W | 0–9.5 SCFH | X | 0–19.0 SCFH |
| Y | 0–47.5 SCFH | Z | 0–95.0 SCFH |
| XX | 0–190 SCFH | YY | 0–475 SCFH |
| **Fittings: | |
| BS | Nickel-plated brass tubing connectors (not available for XX, YY) |
| SS | Stainless steel, 37° flared tubing connectors (not available for XX, YY) |
| NN | No pipe or tubing connectors |
| PP | Pipe fittings on both ends. |
| PB | Pipe fitting on one end, tubing connector on other end (not available for XX, YY) |
| ***Transducer Type: | |||
| 1 | High Resolution Flow Transducer | 2 | High Resolution Dual (pressure/flow) Transducer |
| 3 | Bi-Directional High Resolution Dual Transducer | U | Resistive Flow Transducer |
Please note that an eight digit part number, range, fitting and transducer type designation must be specified for each Flow Finder Assembly when ordering.
Ordering Examples:If you ordered a 9800-3063-YY-NN-2 Flow Measurement Assembly, you would receive a stainless steel bracket with a 0–475 SCFH Flow Finder and a High Resolution Dual Transducer (shown here). No pipe fitting would be supplied with this order.
For additional information about our Flow Measurement Assemblies, please refer to the product data sheet. Pricing information can be obtained from your Purchasing Department or by calling System Studies Incorporated at 800-247-8255.
